Magnetic Frame

Magnetic Frame Magnetic Frame Magnetic Frame

Product name:Magnetic Frame

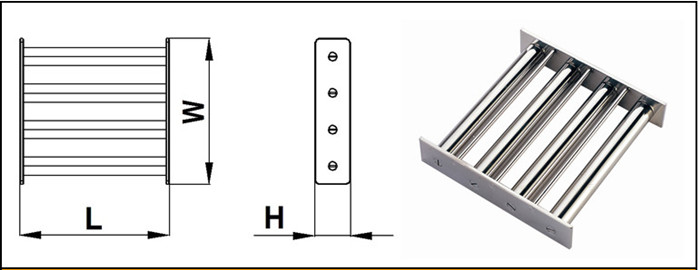

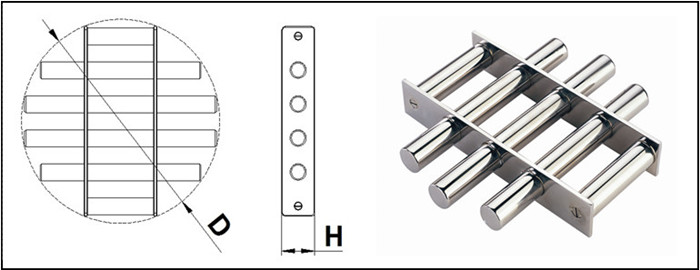

Magnetic Frame were constructed by a row of magnetic bars which are fixed by frames in various shape. These magnetic grates can be square, rectangle, round, oval, triangle,rhombus or irregular polygon, to suit for different position. Center distance of bars is usually 2 inches. All the frames and shells are 100% stainless steel.
It were designed to separate contaminants in free flowing materials such as carbon black,drugs, chemicals, cosmetics, plastics, food industries and so on. These units are easily installed in any hopper or floor opening, chute or duct. It makes product stream free flowing products to come in directly contact with the grate magnets. When anything containing iron substances passes through the framework, Iron particles are attracted to the bar magnets by magnetic fields, by using grate separators, your equipment and facilities
will be protected, while your products will be safe for consumption.
1. Finishing: Well polishing and welding to meet food grade.
2. Material of shell: SS304, SS316 and SS316L seamless steel tube
3.Working Temperature: Standard working temperature of magnetic grages is≦80℃, but if high
temperature is required, we can offer up to 350℃ to meet your special applications
4. Various designs available. Standard type, Easy clean type, one layer, multilayer
5. Also takes customers’ own magnetic grate designs.
6. Customer designs, specifications can be fulfilled.
